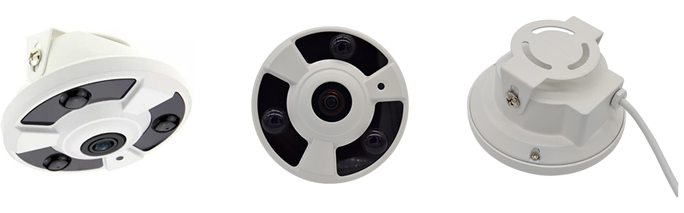

5MP 360 Degree Fisheye IP Camera

MODEL

AS-Fisheye130A

Main Processor

TI368

Sensor

1.3 Megapixel CMOS sensor

Max. Res./Max Frame Rate

Main Flow: 1280*960@30fps 1280*720@30fps

Minor Flow: 640*480@30fps

CAMERA

Day/Night

Yes

Lens

1.56mm Fixed Lens

IR Cut

Support

IR LED

Yes

IRIS

Fixed Aperture F1.2

Viewing Angle

360°

VIDEO

Compression

H.264

Code Stream

32-4096kbps

Bit Rate Type

CBR & VBR

SNR

Above 50DB

Image Enhancement

Automatic White Balance, Backlight Compensation，Luminance, Contrast, Color Adjustment

Video Cover

4 Region can be set up

Superposition of Words

User Defined

NETWORK

Flip Config

Up/Down, Left-right-flip

Audio Compression

G.711/G.726

Alarm In/ Out

1CH

Alarm Procession

The central control monitor, Got to PTZ preset pos, Send E-mail, Log Record, SD Card storage, etc.

Protocol & Service

TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP,POP3,NTP,RTP, RTCP,Pelco-D

Ethernet Port

Ethernet (10/100 Base-T),RJ-45 connectorapplications.

Security

IP Address Filter，User Password Protection,  User Access Log

Software

WEB Browser

Microsoft Internet Explorer 6.0 or above，google,firefox, etc

Software Management

Multi- Multi-channel Network Surveillance System ONVIF Compatibility channel Network Surveillance System ONVIF Compatibility

Motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and VM3000 platform etc. system, phone monitoring (Iphone, Android ), through service “through clouds” P2P and provide complete development kit SDK

GENERAL

Accessories

Power adapter, Network Cable, Stand, User Manual, Disk, Screw Bag

Power Consumption

DC 12V/1A

Operation Temperature

10°C——60°C

Operation Humidity

10%-80%

Remote Access

DDNS, software, P2P

Certification

CE,FCC
